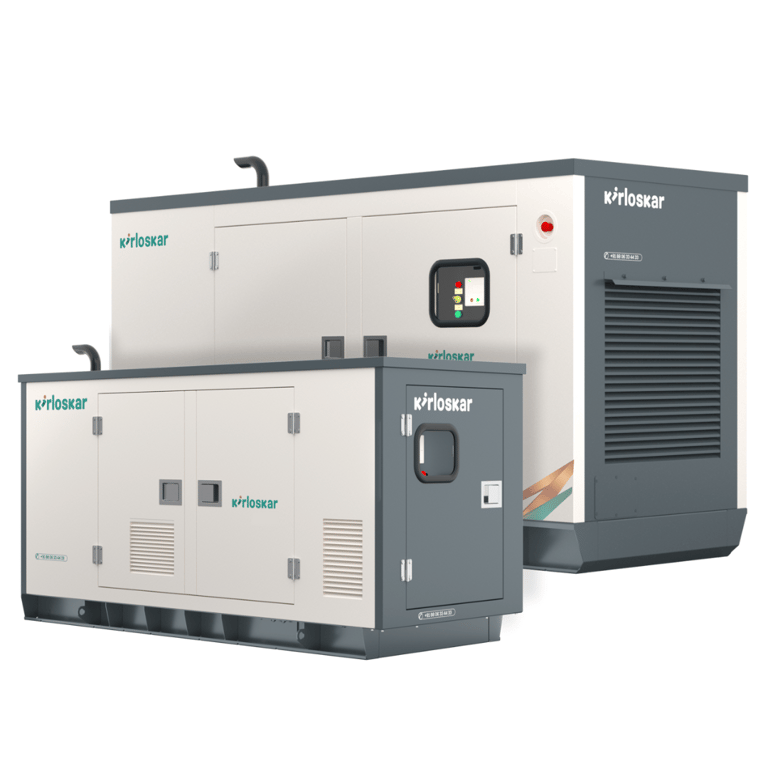

Gas Generator

When it comes to clean and efficient power solutions, our gas generators deliver reliable performance with lower emissions and reduced operating costs. Designed for commercial, industrial, and institutional applications, these generators run on natural gas or LPG, making them an eco-friendly alternative to diesel generators.

Our gas generators are built with advanced technology to ensure high efficiency, low noise levels, and minimal maintenance. From 7.5 kVA to 750 kVA capacities, we provide dependable gas-based power solutions tailored to meet your energy needs.

Gas Generator Specification

Prime Rating at rated RPM (as per ISO8528)		15 (ESP)	30	58.5	125	250
kVA		15	30	58.5	125	250
kW		12	24	46.8	100	200
Genset Model		KG1-15AS NG1	KG4-30 WS NG1	KG1-62.5WS NG1	KG1-125WS NG1	KG1-250WS NG1
Frequency	Hz	50
Power factor	lagging	0.8
Voltage	V	230 (1Ø) & 415 (3Ø)	230 (1Ø) & 415 (3Ø)	415 (3Ø)	415 (3Ø)	415 (3Ø)
Steady-state Governing class		G3
Noise level @ 75% rated load	dBA	< 75 @1 mtrs
Fuel consumption*
At 100 % Load	SCM	4	9.1	15.5	29.3	58.8
At 75 % Load	SCM	3.5	7.1	12.5	23.2	47.2
At 50 % Load	SCM	3.1	5.5	9.9	17.8	35.7
Inlet Gas pressure	Min (Bar)	1	1	0.5	0.5	1
	Max (Bar)	4	4	4	4	4
Weight of genset	Kg	850	1100	2500	3600	5700
Overall dimensions
Length	mm	1740	2550	3325	3750	5100
Width	mm	1050	1122	1225	1500	2000
Height	mm	1410	1410	1800	1980	2410
Battery starting voltage	Volts-DC	12	12	12	24	24
ENGINE
Engine Model		HA294 NG1	3R1040NG1	6R1080 NG1	SL90TA NG1	DV8TA NG1
Rated output	kW	15.1	30.1	61	114.7	228
	HP	20.5	42	83	156	310
No. of cylinder		2	3	6	6	8
Cubic capacity	Ltrs.	1.89	3.1	6.49	8.86	15.92
Bore x Stroke	mm	100 x 120	105x120	105 x 125	118 x 135	130 x 150
Rated speed	RPM	1500
Aspiration		NA	NA	NA	TA	TA
Lube oil change period	hrs.	500
Lube oil sump capacity	Ltrs.	5	9	17	27	46
Coolant capacity	Ltrs.	NA	14	25	30	30
ALTERNATOR
Insulation Class		Class H
Alternator efficiency (at 100% load)	%	86	82.2	91	92.5	92.5
Max voltage dip		< 20%
Max time to build rated voltage		< 5 sec

Gas Generator Benefits

Ready to use genset – Plug & Play
Compliant with latest CPCB norms
Clean & safe fuel (natural gas / LPG)
Lower operating cost compared to diesel generators
No fuel storage required
No fuel handling or transportation hassle (online & metered supply)
Consistent fuel quality with zero adulteration
Advanced electronic ECU & carburation system
Remote monitoring system available
1 year / 3000 hours warranty on complete genset
Low noise operation
Environment-friendly with reduced emissions

Gas Generator Applications

Industrial manufacturing units
Hospitals & healthcare facilities
Commercial buildings & offices
Hotels & hospitality sector
Shopping malls & retail outlets
Educational institutions & colleges
Data centers & IT parks
Construction sites
Residential societies & apartments
Telecom towers & infrastructure

FAQ of Gas Generator

1. What is a gas generator?

A gas generator is a power generation system that uses natural gas, LPG, or biogas as fuel to produce electricity efficiently with lower emissions compared to diesel generators.

2. What types of gas are used in gas generators?

Gas generators commonly use natural gas, LPG (liquefied petroleum gas), biogas, or PNG depending on availability and application.

3. Where are gas generators used?

They are widely used in industries, hospitals, commercial buildings, hotels, and manufacturing units for continuous and backup power supply.

4. What are the advantages of gas generators?

Gas generators offer lower fuel costs, reduced emissions, quieter operation, and longer engine life compared to diesel generators.

5. What is the capacity range of gas generators?

Gas generators are available in various capacities, typically ranging from 5 kVA to 750 kVA or more, depending on industrial requirements.

6. Are gas generators environmentally friendly?

Yes, gas generators produce fewer pollutants like NOx, SOx, and particulate matter, making them a cleaner and eco-friendly power solution.

7. Do gas generators require maintenance?

Yes, regular maintenance such as engine checks, filter replacement, and gas line inspection is required to ensure optimal performance and longevity.

8. What is fuel consumption in gas generators?

Fuel consumption depends on load and generator capacity, but gas generators are generally more cost-efficient compared to diesel generators.

9. Can gas generators run continuously?

Yes, gas generators are ideal for continuous operation and are often used for prime power applications in industries.

10. What factors should be considered while selecting a gas generator?

You should consider load requirement, fuel type availability, efficiency, installation space, emission norms, and operational cost before choosing a gas generator.
